#include <string.h>
#include <stdlib.h>
#include <stdio.h>
#include <hdf5.h>
#include <hdf5_hl.h>

Include dependency graph for fclib.h:

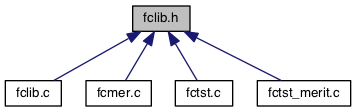

This graph shows which files directly or indirectly include this file:

Classes
struct	fclib_info
	This structure allows the user to enter a problem information as a title, a short description and known mathematical properties of the problem. More...

struct	fclib_matrix_info
	This structure allows the user to enter a description for a given matrix (comment, conditionning, determinant, rank.) if they are known. More...

struct	fclib_matrix
	matrix in compressed row/column or triplet form More...

struct	fclib_global
	The global frictional contact problem defined by. More...

struct	fclib_local
	The local frictional contact problem defined by. More...

struct	fclib_solution
	A solution or a guess for the frictional contact problem. More...

Macros
#define	FCLIB_APICOMPILE

#define	FCLIB_STATIC static

#define	FCLIB_IMPLEMENTATION

#define	H5Gcreate_vers 2

#define	H5Gopen_vers 2

#define	ASSERT(Test, ...)

#define	IO(Call) ASSERT ((Call) >= 0, "ERROR: HDF5 call failed")

#define	MM(Call) ASSERT ((Call), "ERROR: out of memory")

Functions
FCLIB_STATIC int	fclib_write_global (struct fclib_global problem, const char path)
	write global problem; return 1 on success, 0 on failure More...

FCLIB_STATIC int	fclib_write_local (struct fclib_local problem, const char path)
	write local problem; return 1 on success, 0 on failure More...

FCLIB_STATIC int	fclib_write_solution (struct fclib_solution solution, const char path)
	write solution; return 1 on success, 0 on failure More...

FCLIB_STATIC int	fclib_write_guesses (int number_of_guesses, struct fclib_solution guesses, const char path)
	write initial guesses; return 1 on success, 0 on failure More...

FCLIB_STATIC struct fclib_global *	fclib_read_global (const char *path)
	read global problem; return problem on success; NULL on failure More...

FCLIB_STATIC struct fclib_local *	fclib_read_local (const char *path)
	read local problem; return problem on success; NULL on failure More...

FCLIB_STATIC struct fclib_solution *	fclib_read_solution (const char *path)
	read solution; return solution on success; NULL on failure More...

FCLIB_STATIC struct fclib_solution *	fclib_read_guesses (const char path, int number_of_guesses)
	read initial guesses; return vector of guesses on success; NULL on failure; output number of guesses in the variable pointed by 'number_of_guesses' More...

FCLIB_STATIC void	fclib_delete_global (struct fclib_global *problem)
	delete global problem More...

FCLIB_STATIC void	fclib_delete_local (struct fclib_local *problem)
	delete local problem More...

FCLIB_STATIC void	fclib_delete_solutions (struct fclib_solution *data, int count)
	delete solutions or guesses More...

FCLIB_STATIC int	fclib_create_int_attributes_in_info (const char path, const char attr_name, int attr_value)
	create and set attributes of tyoe int in info More...

FCLIB_STATIC hid_t	H5Gmake (hid_t loc_id, const char *name)
	make group More...

FCLIB_STATIC void	write_matrix (hid_t id, struct fclib_matrix *mat)
	write matrix More...

FCLIB_STATIC struct fclib_matrix *	read_matrix (hid_t id)
	read matrix More...

FCLIB_STATIC void	write_global_vectors (hid_t id, struct fclib_global *problem)
	write global vectors More...

FCLIB_STATIC void	read_global_vectors (hid_t id, struct fclib_global *problem)
	read global vectors More...

FCLIB_STATIC void	write_local_vectors (hid_t id, struct fclib_local *problem)
	write local vectors More...

FCLIB_STATIC void	read_local_vectors (hid_t id, struct fclib_local *problem)
	read local vectors More...

FCLIB_STATIC void	write_problem_info (hid_t id, struct fclib_info *info)
	write problem info More...

FCLIB_STATIC struct fclib_info *	read_problem_info (hid_t id)
	read problem info More...

FCLIB_STATIC void	write_solution (hid_t id, struct fclib_solution *solution, hsize_t nv, hsize_t nr, hsize_t nl)
	write solution More...

FCLIB_STATIC void	read_solution (hid_t id, hsize_t nv, hsize_t nr, hsize_t nl, struct fclib_solution *solution)
	read solution More...

FCLIB_STATIC int	read_nvnunrnl (hid_t file_id, int nv, int nr, int *nl)
	read solution sizes More...

FCLIB_STATIC void	delete_matrix_info (struct fclib_matrix_info *info)
	delete matrix info More...

FCLIB_STATIC void	delete_matrix (struct fclib_matrix *mat)
	delete matrix More...

FCLIB_STATIC void	delete_info (struct fclib_info *info)
	delete problem info More...

Variables
enum FCLIB_APICOMPILE	fclib_merit

	MERIT_1

Detailed Description

frictional contact library interface

This C API provides functions to read and write Frictional contact problems in HDF5 format Two kind of problem are considered Given

a symmetric positive semi–definite matrix \({W} \in {\mathrm{I\!R}}^{m \times m} \)
a vector \( {q} \in {\mathrm{I\!R}}^m\)
a vector of coefficients of friction \(\mu \in{\mathrm{I\!R}}^{n_c}\)

the local FC problem is to find two vectors \(u\in{\ensuremath{\mathrm{I\!R}}}^m\), the relative local velocity and \(r\in {\ensuremath{\mathrm{I\!R}}}^m\), the contact forces denoted by \(\mathrm{FC}(W,q,\mu)\) such that

\begin{eqnarray*} \begin{cases} \hat u = W r + q +\left[ \left[\begin{array}{c} \mu^\alpha \|u^\alpha_T\|\ \ 0 \ \ 0 \end{array}\right]^T, \alpha = 1 \ldots n_c \right]^T \\ \ \ C^\star_{\mu} \ni {\hat u} \perp r \in C_{\mu} \end{cases} \end{eqnarray*}

where the Coulomb friction cone for a contact \(\alpha\) is defined by

\begin{eqnarray*} \label{eq:CCC} C_{\mu^\alpha}^{\alpha} = \{r^\alpha, \|r^\alpha_T \| \leq \mu^\alpha |r^\alpha_N| \} *\end{eqnarray*}

and the set \(C^{\alpha,\star}_{\mu^\alpha}\) is its dual. We are also dealing with global FC problem defined by Given

a symmetric positive definite matrix \({M} \in {\mathrm{I\!R}}^{n \times n}\)
a vector \( {f} \in {\mathrm{I\!R}}^n\),
a matrix \({H} \in {\mathrm{I\!R}}^{n \times m}\)
a matrix \({G} \in {\mathrm{I\!R}}^{n \times p}\)
a vector \(w \in {\mathrm{I\!R}}^{m}\),
a vector \(b \in {\mathrm{I\!R}}^{p}\),
a vector of coefficients of friction \(\mu \in {\mathrm{I\!R}}^{n_c}\)

the Global Mixed 3DFC problem is to find four vectors \( {v} \in {\mathrm{I\!R}}^n\), \(u\in{\mathrm{I\!R}}^m\), \(r\in {\mathrm{I\!R}}^m\) and \(\lambda \in {\mathrm{I\!R}}^p\) denoted by \(\mathrm{GM3DFC}(M,H,G,w,b,\mu)\) such that

\begin{eqnarray*} \begin{cases} M v = {H} {r} + G\lambda + {f} \\ \ \ G^T v +b =0 \\ \ \ \hat u = H^T v + w +\left[ \left[\begin{array}{c} \mu \|u^\alpha_T\|\ \ 0 \ \ 0 \end{array}\right]^T, \alpha = 1 \ldots n_c \right]^T \\ \ \ C^\star_{\mu} \ni {\hat u} \perp r \in C_{\mu} \end{cases} \end{eqnarray*}

Definition in file fclib.h.

Macro Definition Documentation

◆ FCLIB_APICOMPILE

#define FCLIB_APICOMPILE

Definition at line 91 of file fclib.h.

◆ FCLIB_STATIC

#define FCLIB_STATIC static

Definition at line 96 of file fclib.h.

◆ FCLIB_IMPLEMENTATION

#define FCLIB_IMPLEMENTATION

Definition at line 97 of file fclib.h.

◆ H5Gcreate_vers

#define H5Gcreate_vers 2

Definition at line 103 of file fclib.h.

◆ H5Gopen_vers

#define H5Gopen_vers 2

Definition at line 104 of file fclib.h.

◆ ASSERT

#define ASSERT	(	Test,
		...
	)

Value:

do {\
  if (! (Test)) { fprintf (stderr, "%s: %d => ", __FILE__, __LINE__);\
    fprintf (stderr, __VA_ARGS__);\
    fprintf (stderr, "\n"); exit (1); } } while (0)

Definition at line 370 of file fclib.h.

Referenced by fclib_write_global(), fclib_write_local(), read_global_vectors(), read_local_vectors(), read_matrix(), read_solution(), write_global_vectors(), write_local_vectors(), write_matrix(), and write_solution().

◆ IO

#define IO ( Call ) ASSERT ((Call) >= 0, "ERROR: HDF5 call failed")

◆ MM

#define MM ( Call ) ASSERT ((Call), "ERROR: out of memory")

Definition at line 377 of file fclib.h.

Referenced by fclib_read_global(), fclib_read_guesses(), fclib_read_local(), fclib_read_solution(), read_global_vectors(), read_local_vectors(), read_matrix(), read_problem_info(), and read_solution().

Function Documentation

◆ fclib_write_global()

FCLIB_STATIC int FCLIB_APICOMPILE fclib_write_global	(	struct fclib_global *	problem,
		const char *	path
	)

write global problem; return 1 on success, 0 on failure

Definition at line 781 of file fclib.h.

References ASSERT, fclib_global::G, fclib_global::H, H5Gmake(), fclib_global::info, IO, fclib_global::M, fclib_global::spacedim, write_global_vectors(), write_matrix(), and write_problem_info().

Referenced by main().

Here is the call graph for this function:

◆ fclib_write_local()

FCLIB_STATIC int FCLIB_APICOMPILE fclib_write_local	(	struct fclib_local *	problem,
		const char *	path
	)

write local problem; return 1 on success, 0 on failure

Definition at line 853 of file fclib.h.

References ASSERT, H5Gmake(), fclib_local::info, IO, fclib_local::R, fclib_local::spacedim, fclib_local::V, fclib_local::W, write_local_vectors(), write_matrix(), and write_problem_info().

Referenced by main().

Here is the call graph for this function:

◆ fclib_write_solution()

FCLIB_STATIC int FCLIB_APICOMPILE fclib_write_solution	(	struct fclib_solution *	solution,
		const char *	path
	)

write solution; return 1 on success, 0 on failure

Definition at line 921 of file fclib.h.

References H5Gmake(), IO, read_nvnunrnl(), and write_solution().

Referenced by main().

Here is the call graph for this function:

◆ fclib_write_guesses()

FCLIB_STATIC int FCLIB_APICOMPILE fclib_write_guesses	(	int	number_of_guesses,
		struct fclib_solution *	guesses,
		const char *	path
	)

write initial guesses; return 1 on success, 0 on failure

Definition at line 961 of file fclib.h.

References H5Gmake(), IO, read_nvnunrnl(), and write_solution().

Referenced by main().

Here is the call graph for this function:

◆ fclib_read_global()

FCLIB_STATIC struct FCLIB_APICOMPILE fclib_global * fclib_read_global ( const char * path )

read global problem; return problem on success; NULL on failure

Definition at line 1011 of file fclib.h.

References fclib_global::G, fclib_global::H, fclib_global::info, IO, fclib_global::M, MM, read_global_vectors(), read_matrix(), read_problem_info(), and fclib_global::spacedim.

Referenced by main().

Here is the call graph for this function:

◆ fclib_read_local()

FCLIB_STATIC struct FCLIB_APICOMPILE fclib_local * fclib_read_local ( const char * path )

read local problem; return problem on success; NULL on failure

Definition at line 1061 of file fclib.h.

References fclib_local::info, IO, MM, fclib_local::R, read_local_vectors(), read_matrix(), read_problem_info(), fclib_local::spacedim, fclib_local::V, and fclib_local::W.

Referenced by main().

Here is the call graph for this function:

◆ fclib_read_solution()

FCLIB_STATIC struct FCLIB_APICOMPILE fclib_solution * fclib_read_solution ( const char * path )

read solution; return solution on success; NULL on failure

Definition at line 1117 of file fclib.h.

References IO, MM, read_nvnunrnl(), and read_solution().

Referenced by main().

Here is the call graph for this function:

◆ fclib_read_guesses()

FCLIB_STATIC struct FCLIB_APICOMPILE fclib_solution * fclib_read_guesses	(	const char *	path,
		int *	number_of_guesses
	)

read initial guesses; return vector of guesses on success; NULL on failure; output number of guesses in the variable pointed by 'number_of_guesses'

read initial guesses; return vector of guesses on success; NULL on failure; output numebr of guesses in the variable pointed by 'number_of_guesses'

Definition at line 1145 of file fclib.h.

References IO, MM, read_nvnunrnl(), and read_solution().

Referenced by main().

Here is the call graph for this function:

◆ fclib_delete_global()

FCLIB_STATIC void FCLIB_APICOMPILE fclib_delete_global ( struct fclib_global * problem )

delete global problem

Definition at line 1185 of file fclib.h.

References fclib_global::b, delete_info(), delete_matrix(), fclib_global::f, fclib_global::G, fclib_global::H, fclib_global::info, fclib_global::M, fclib_global::mu, and fclib_global::w.

Referenced by main().

Here is the call graph for this function:

◆ fclib_delete_local()

FCLIB_STATIC void FCLIB_APICOMPILE fclib_delete_local ( struct fclib_local * problem )

delete local problem

Definition at line 1198 of file fclib.h.

References delete_info(), delete_matrix(), fclib_local::info, fclib_local::mu, fclib_local::q, fclib_local::R, fclib_local::s, fclib_local::V, and fclib_local::W.

Referenced by main().

Here is the call graph for this function:

◆ fclib_delete_solutions()

FCLIB_STATIC void FCLIB_APICOMPILE fclib_delete_solutions	(	struct fclib_solution *	data,
		int	count
	)

delete solutions or guesses

Definition at line 1210 of file fclib.h.

References fclib_solution::l, fclib_solution::r, fclib_solution::u, and fclib_solution::v.

Referenced by main().

◆ fclib_create_int_attributes_in_info()

FCLIB_STATIC int FCLIB_APICOMPILE fclib_create_int_attributes_in_info	(	const char *	path,
		const char *	attr_name,
		int	attr_value
	)

create and set attributes of tyoe int in info

Definition at line 732 of file fclib.h.

References H5Gmake(), and IO.

Here is the call graph for this function:

◆ H5Gmake()

FCLIB_STATIC hid_t H5Gmake	(	hid_t	loc_id,
		const char *	name
	)

make group

Definition at line 381 of file fclib.h.

Referenced by fclib_create_int_attributes_in_info(), fclib_write_global(), fclib_write_guesses(), fclib_write_local(), and fclib_write_solution().

◆ write_matrix()

FCLIB_STATIC void write_matrix	(	hid_t	id,
		struct fclib_matrix *	mat
	)

write matrix

Definition at line 396 of file fclib.h.

References ASSERT, fclib_matrix_info::comment, fclib_matrix_info::conditioning, fclib_matrix_info::determinant, fclib_matrix::i, fclib_matrix::info, IO, fclib_matrix::m, fclib_matrix::n, fclib_matrix::nz, fclib_matrix::nzmax, fclib_matrix::p, fclib_matrix_info::rank, and fclib_matrix::x.

Referenced by fclib_write_global(), and fclib_write_local().

◆ read_matrix()

FCLIB_STATIC struct fclib_matrix* read_matrix ( hid_t id )

read matrix

Definition at line 441 of file fclib.h.

References ASSERT, fclib_matrix_info::comment, fclib_matrix_info::conditioning, fclib_matrix_info::determinant, fclib_matrix::i, fclib_matrix::info, IO, fclib_matrix::m, MM, fclib_matrix::n, fclib_matrix::nz, fclib_matrix::nzmax, fclib_matrix::p, fclib_matrix_info::rank, and fclib_matrix::x.

Referenced by fclib_read_global(), and fclib_read_local().

◆ write_global_vectors()

FCLIB_STATIC void write_global_vectors	(	hid_t	id,
		struct fclib_global *	problem
	)

write global vectors

Definition at line 505 of file fclib.h.

References ASSERT, fclib_global::b, fclib_global::f, fclib_global::G, fclib_global::H, IO, fclib_matrix::m, fclib_global::M, fclib_global::mu, fclib_matrix::n, fclib_global::spacedim, and fclib_global::w.

Referenced by fclib_write_global().

◆ read_global_vectors()

FCLIB_STATIC void read_global_vectors	(	hid_t	id,
		struct fclib_global *	problem
	)

read global vectors

Definition at line 529 of file fclib.h.

References ASSERT, fclib_global::b, fclib_global::f, fclib_global::G, fclib_global::H, IO, fclib_matrix::m, fclib_global::M, MM, fclib_global::mu, fclib_matrix::n, fclib_global::spacedim, and fclib_global::w.

Referenced by fclib_read_global().

◆ write_local_vectors()

FCLIB_STATIC void write_local_vectors	(	hid_t	id,
		struct fclib_local *	problem
	)

write local vectors

Definition at line 548 of file fclib.h.

References ASSERT, IO, fclib_matrix::m, fclib_local::mu, fclib_local::q, fclib_local::R, fclib_local::s, fclib_local::spacedim, fclib_local::V, and fclib_local::W.

Referenced by fclib_write_local().

◆ read_local_vectors()

FCLIB_STATIC void read_local_vectors	(	hid_t	id,
		struct fclib_local *	problem
	)

read local vectors

Definition at line 569 of file fclib.h.

References ASSERT, IO, fclib_matrix::m, MM, fclib_local::mu, fclib_local::q, fclib_local::R, fclib_local::s, fclib_local::spacedim, and fclib_local::W.

Referenced by fclib_read_local().

◆ write_problem_info()

FCLIB_STATIC void write_problem_info	(	hid_t	id,
		struct fclib_info *	info
	)

write problem info

Definition at line 586 of file fclib.h.

References fclib_matrix::info, and IO.

Referenced by fclib_write_global(), and fclib_write_local().

◆ read_problem_info()

FCLIB_STATIC struct fclib_info* read_problem_info ( hid_t id )

read problem info

Definition at line 594 of file fclib.h.

References fclib_info::description, IO, fclib_info::math_info, MM, and fclib_info::title.

Referenced by fclib_read_global(), and fclib_read_local().

◆ write_solution()

FCLIB_STATIC void write_solution	(	hid_t	id,
		struct fclib_solution *	solution,
		hsize_t	nv,
		hsize_t	nr,
		hsize_t	nl
	)

write solution

Definition at line 631 of file fclib.h.

References ASSERT, IO, fclib_solution::l, fclib_solution::r, fclib_solution::u, and fclib_solution::v.

Referenced by fclib_write_guesses(), and fclib_write_solution().

◆ read_solution()

FCLIB_STATIC void read_solution	(	hid_t	id,
		hsize_t	nv,
		hsize_t	nr,
		hsize_t	nl,
		struct fclib_solution *	solution
	)

read solution

Definition at line 642 of file fclib.h.

References ASSERT, IO, fclib_solution::l, MM, fclib_solution::r, fclib_solution::u, and fclib_solution::v.

Referenced by fclib_read_guesses(), and fclib_read_solution().

◆ read_nvnunrnl()

FCLIB_STATIC int read_nvnunrnl	(	hid_t	file_id,
		int *	nv,
		int *	nr,
		int *	nl
	)

read solution sizes

Definition at line 666 of file fclib.h.

References IO.

Referenced by fclib_read_guesses(), fclib_read_solution(), fclib_write_guesses(), and fclib_write_solution().

◆ delete_matrix_info()

FCLIB_STATIC void delete_matrix_info ( struct fclib_matrix_info * info )

delete matrix info

Definition at line 698 of file fclib.h.

References fclib_matrix_info::comment.

Referenced by delete_matrix().

◆ delete_matrix()

FCLIB_STATIC void delete_matrix ( struct fclib_matrix * mat )

delete matrix

Definition at line 708 of file fclib.h.

References delete_matrix_info(), fclib_matrix::i, fclib_matrix::info, fclib_matrix::p, and fclib_matrix::x.

Referenced by fclib_delete_global(), and fclib_delete_local().

Here is the call graph for this function:

◆ delete_info()

FCLIB_STATIC void delete_info ( struct fclib_info * info )

delete problem info

Definition at line 721 of file fclib.h.

References fclib_info::description, fclib_info::math_info, and fclib_info::title.

Referenced by fclib_delete_global(), and fclib_delete_local().

Variable Documentation

◆ fclib_merit

enum FCLIB_APICOMPILE fclib_merit

Definition at line 290 of file fclib.h.

◆ MERIT_1

MERIT_1

Definition at line 290 of file fclib.h.

Referenced by main().

Classes

Macros

Functions

Variables

Detailed Description

frictional contact library interface

Macro Definition Documentation

◆ FCLIB_APICOMPILE

◆ FCLIB_STATIC

◆ FCLIB_IMPLEMENTATION

◆ H5Gcreate_vers

◆ H5Gopen_vers

◆ ASSERT

◆ IO

◆ MM

Function Documentation

◆ fclib_write_global()

◆ fclib_write_local()

◆ fclib_write_solution()

◆ fclib_write_guesses()

◆ fclib_read_global()

◆ fclib_read_local()

◆ fclib_read_solution()

◆ fclib_read_guesses()

◆ fclib_delete_global()

◆ fclib_delete_local()

◆ fclib_delete_solutions()

◆ fclib_create_int_attributes_in_info()

◆ H5Gmake()

◆ write_matrix()

◆ read_matrix()

◆ write_global_vectors()

◆ read_global_vectors()

◆ write_local_vectors()

◆ read_local_vectors()

◆ write_problem_info()

◆ read_problem_info()

◆ write_solution()

◆ read_solution()

◆ read_nvnunrnl()

◆ delete_matrix_info()

◆ delete_matrix()

◆ delete_info()

Variable Documentation

◆ fclib_merit

◆ MERIT_1
